Brand Name : Liri Tent
Model Number : BTA
Certification : CE, SGS, ISO, TUV, etc
Place of Origin : Zhuhai, Guangdong, China
MOQ : no limitation
Price : USD30-80/sqm
Supply Ability : 50000sqm/month
Delivery Time : 25 work days
Packaging Details : 1. Membrane Film 2. Carton 3. PVC Carry Bag
width : 3m-60m
roof cover : 850g/sqm double PVC-coated polyester textile
sidewall : soft PVC walls,glass wall,ABS hard wall,sandwich panel wall,etc.
Fixing Solution : ground anchor, expandable bolt, weight plate, etc.
Frame Structure : hard pressed extruded aluminum frame
Fabric color : transparent, white, blue, red, green, yellow, black, silver grey, etc.

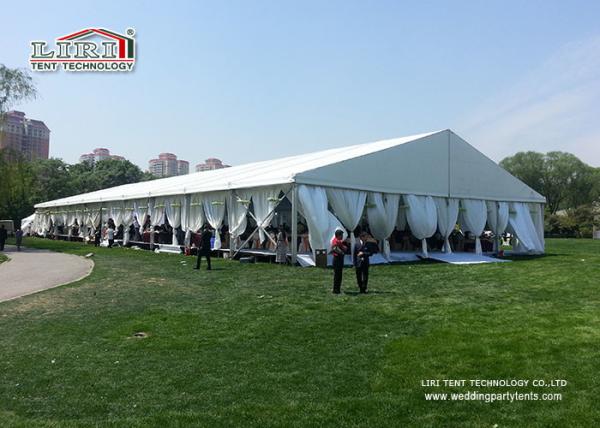

White Color Roof Aluminum Structure For Event Party, 1000 People Capacity For Wedding
Product Description:
Our white color roof cover event tent is popular used for outdoor exhibition, wedding party and so on. For 500-1000 people or even more bigger, we can offer you different solution for different idea tent.
1. Application:
Widely used for party, outdoor exhibition, outdoor wedding, trade fair, celebration, sports event, and workshop.
2. Specification:
For details, pls refer to below chart:
1). Main profile size for the BTA series: 204X110X4mm
2). Clear-span: 25m
3). Wind load: 100KM/h
4). Minimum tent length : In order to reach the designed wind load and make sure the tent is safe, pls set up the tent with the required minimum tent length.
Span width | Eave height | Ridge height | Bay distance | Main profile |
10m | 3.88m | 5.53m | 5m | 204x110x4mm (4-channel) |
12m | 3.88m | 5.83m | 5m | 204x110x4mm (4-channel) |
15m | 3.88m | 6.3m | 5m | 204x110x4mm (4-channel) |
20m | 3.88m | 7.1m | 5m | 204x110x4mm (4-channel) |
21m | 3.88m | 7.25m | 5m | 204x110x4mm (4-channel) |
25m | 3.88m | 7.88m | 5m | 204x110x4mm (4-channel) |
3. Material:
1). Frame: hard pressed extruded aluminum 6061 /T6(13HW)
2). Fabric: High quality double PVC-coated polyester textile, 100% waterproof, flame retardant to DIN4102 B1, M2, UV resistant, tear resistant, self- cleaning ability , etc.

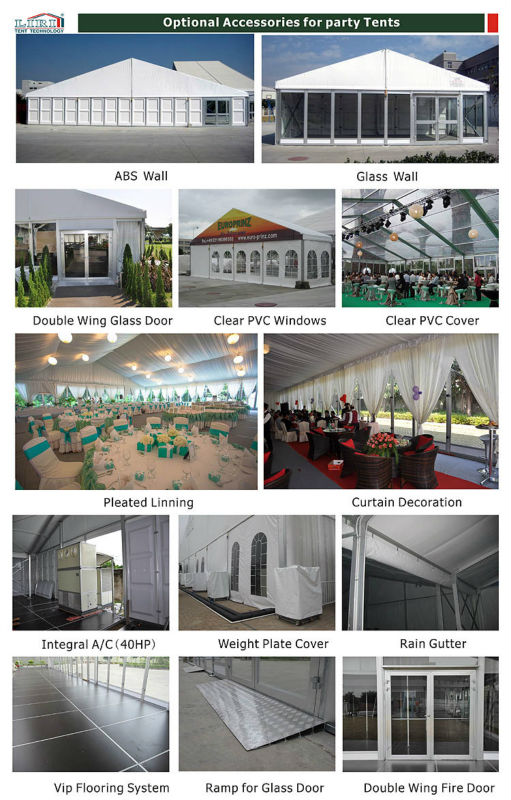

4. Optional accessories:
Wooden floor, glass door, glass wall, PVC hard wall, ground anchors, sidewalls with PVC-clear windows, rain gutters, decoration ceilings and inside curtain.
5. Color available:
White, red, yellow, blue, green, black, gray, transparent, etc.
6. Optional Fixing Methods:
1). Ground anchor (steel peg): For soft ground surface like earth, sand, lawn, etc.
2). Inflatable screw: For hard surface like cement, stone, or prefab concrete cubic, etc.
3). Weight plate: For protective ground surface like marble, ceramic & tiles, asphalt, brick, etc.
7. Life span:
Fabric (cover & sidewalls): 10years;
Aluminum frame and galvanized connectors: 20years
8. Product Certificate:
1). Fabric: Test reports for the fire retardant, standards:NFPA701, CFM & din 4102B1/M2
2). Structure safety: Certificates by the registered engineers in the U.S.A & Australia.
If the customers need above certificates copy, pls feel free to contact with Liri Tent Technology. We will not show them on the website to avoid copies.
9. Reputation:
1). Guaranteeing quality but reducing cost by 17 years' experience.
2). Focusing on global PVC tents market and requirements.
3). Innovating hardware design for more trendy and convenient.
4). In order to improve efficiency, suppliers of raw material are neighboring.
5). 100% inspection before exporting and 100% after-sales service following.
6). On going creation and innovation can go beyond.
